TGF-MUS-SI Silikon Gap Filler sehr weich

TGF-MUS-SI is an electrically insulating thermally conductive silicone gap filler. It is ideal for use in applications where thermal transfer over large gaps caused e.g. by big tolerances or different stack up heights must be achieved. Due to the specific formulation and filling with ceramic particles the silicone elastomer has a very high thermal conductivity. Through its extreme softness and flexibility the material perfectly mates to irregular surfaces thus filling gaps at very low pressure. By its use the total thermal resistance is minimised. The natural tackiness of the material allows for an easy and reliable pre-assembly.




PROPRIÉTÉS

  • Extremely soft and compliable
  • Thermal conductivity: 3.0 W/mK
  • Operates at very low pressure
  • Extraordinary chemical resistance and longterm stability
  • Shock absorbing
  • Easy mounting through self tackiness
  • One or two-side self-tacky

DISPONIBILITÉ

  • Sheet 480 x 460 mm (1.0 mm)
  • Sheet 460 x 460 mm (2.0 mm)
  • Sheet 450 x 460 mm (≥3.0 mm)
  • Tacky on both sides
    (TGF-MUSXXXX-SI)
  • Tacky on one side
    (TGF-MUSXXXX-SI-A1)
  • Die cut parts
  • Kiss cut parts on sheet

EXEMPLES D'APPLICATION

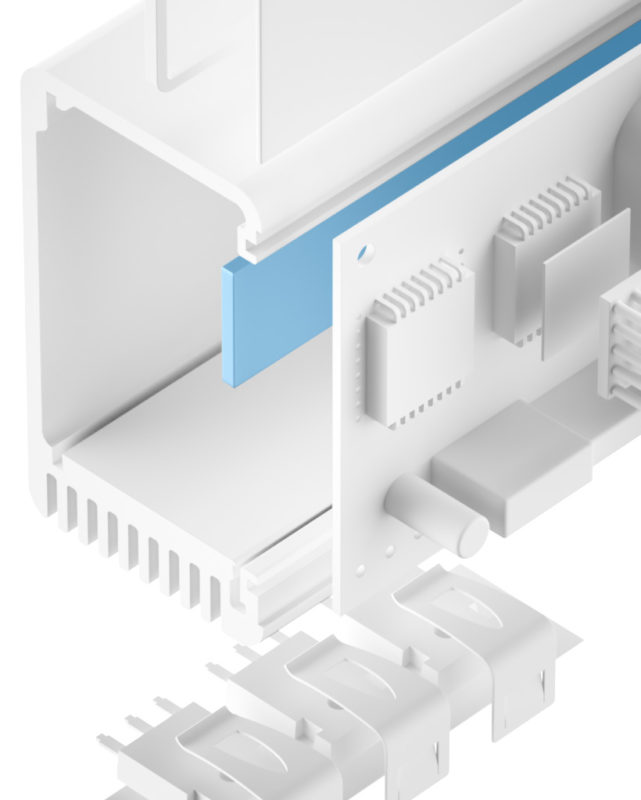

Thermal link of:

  • SMD packages
  • Through-hole vias
  • Capacitors
  • Electronic parts to heat pipes

For use in Automotive applications / Laptops / Medicine engineering / Industrial PCs

OVERVIEW

PropertyUnitTGF-MUS1000-SITGF-MUS2000-SITGF-MUS3000-SI
MaterialCeramic filled siliconeCeramic filled siliconeCeramic filled silicone
ColourLight blueLight blueLight blue
Thicknessmm1,0±0,102,0±0,203,0±0,30
HardnessShore 00202020
UL FlammabilityUL 94V0V0V0
RoHS Conformity2015 / 863 / EUYesYesYes
Thermal
Resistance1 @ 60 PSI @ Thickness°C-inch²/W (mm)0,37 (0,52)0,58 (0,85)0,74 (1,06)
Resistance1 @ 30 PSI @ Thickness°C-inch²/W (mm)0,42 (0,59)0,70 (1,02)0,89 (1,32)
Resistance1 @ 10 PSI @ Thickness°C-inch²/W (mm)0,49 (0,70)0,89 (1,29)1,20 (1,70)
Thermal ConductivityW/mK3,03,03,0
Operating Temperature Range°C- 60 bis + 180- 60 bis + 180- 60 bis + 180
Electric
Dielectric StrengthkV / mm101010
Volume ResistivityOhm - cm1,0 x 10111,0 x 10111,0 x 1011
Dielectric Constant@ 1 kHz5,25,25,2
