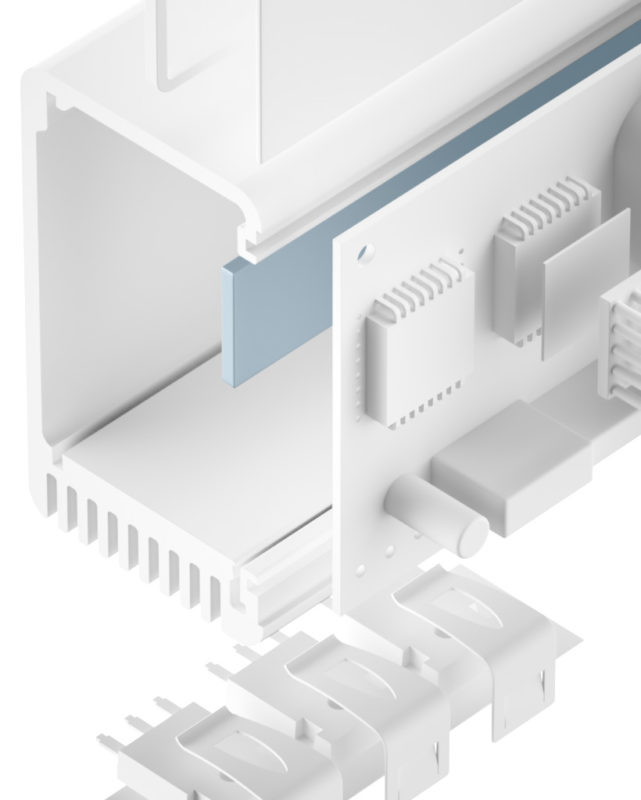

TGF-Z-SI is an electrically insulating thermally conductive silicone gap filler. It is ideal for use in applications where thermal transfer over large gaps caused e.g. by big tolerances or different stack up heigths must be achieved. Due to the specific formulation and filling with ceramic particles the silicone elastomer has an extremely high thermal conductivity. Through its softness and plasticity the material perfectly mates to irregular surfaces thus optimizing the thermal contact at low pressure. By its use the total thermal resistance is minimised. The natural tackiness of the material allows for an easy and reliable pre-assembly.
PROPRIÉTÉS
- Soft and compliable
- Thermal conductivity: 11 W/mK
- Operates at low pressure
- Extraordinary chemical resistance and longterm stability
- Shock absorbing
- Easy mounting through self tackiness
- One or two-side self-tacky
DISPONIBILITÉ
- Sheet 200 x 300 mm
- Tacky on both sides
(TGF-ZXXXX-SI) - Tacky on one side by talcum coating
(TGF-ZXXXX-SI-A1) - Die cut parts
- Kiss cut parts on sheet
EXEMPLES D'APPLICATION
Thermal link of:
- SMD packages
- Through-hole vias
- RDRAMs memory modules
- Capacitors
For use in Automotive applications / Laptops / Medicine engineering / Embedded-boards
OVERVIEW
| Property | Unit | TGF-Z1000-SI | TGF-Z1500-SI | TGF-Z2000-SI |
|---|---|---|---|---|
| Material | Ceramic filled silicone | Ceramic filled silicone | Ceramic filled silicone | |
| Colour | Light grey | Light grey | Light grey | |
| Density | g/cm3 | 3,4 | 3,4 | 3,4 |
| Thickness | mm | 1,0 | 1,5 | 2,0 |
| Hardness | Shore 00 | 72 | 72 | 72 |
| UL Flammability | UL 94 | V0 | V0 | V0 |
| RoHS Conformity | 2015 / 863 / EU | Yes | Yes | Yes |
| Thermal | ||||
| Resistance @ 60 PSI @ Thickness | °C-inch²/W mm) | 0.21 (0.82 mm) | 0.30 (1.21 mm) | 0.37 (1.59 mm) |
| Resistance @ 30 PSI @ Thickness | °C-inch²/W mm) | 0.23 (0.89 mm) | 0.32 (1.33 mm) | 0.42 (1.76 mm) |
| Resistance @ 10 PSI @ Thickness | °C-inch²/W mm) | 0.24 (0.95 mm) | 0.37 (1.41 mm) | 0.50 (1.88 mm) |
| Thermal Conductivity | W/mK | 11,0 | 11,0 | 11,0 |
| Operating Temperature Range | °C | - 50 bis + 150 | - 50 bis + 150 | - 50 bis + 150 |
| Electric | ||||
| Dielectric Strength | kV / mm | >14 | >14 | >14 |
| Volume Resistivity | Ohm - cm | 1,0 x 1011 | 1,0 x 1011 | 1,0 x 1011 |
| Dielectric Constant | 1 MHz | ca. 7,2 | ca. 7,2 | ca. 7,2 |
