TFO-J-SI

CONTACT

Téléchargements TFO-J-SI Data Sheet

Commande d’échantillonnage

TFO-J-SI Silikonfolie glasfaserverstärkt

TFO-J-SI is an electrically insulating thermally conductive silicone foil for an optimised thermal coupling between electronic packages and heat sinks. Through the specific formulation and filling with thermally conductive ceramic particles a high thermal conductivity is reached. Under pressure the total thermal resistance is minimised. The material is characterised by its very high dielectric properties. The fibreglass reinforcement provides for an outstanding mechanic stability and cut-through resistance as well as easy handling. For an easy and reliable pre-assembly the interface material is available with low tack pressure sensitive adhesive on one side.

PROPRIÉTÉS

Thermal conductivity: 2.0 W/mK
High thermal contact
Outstanding mechanic stability through fibreglass reinforcement
Very high dielectric strength
Extraordinary chemical resistance and longterm stability
Residue-free removal after use

DISPONIBILITÉ

Sheet
Roll 300 mm x 50 m (0.20 / 0.30 mm)
Roll 300 mm x 25 m (0.45 mm)
Non tacky
(TFO-JXXX-SI)
Tacky on one side
(TFO-JXXX-SI-A1)
Die cut parts
Kiss cut parts on roll
Kiss cut parts on sheet

EXEMPLES D'APPLICATION

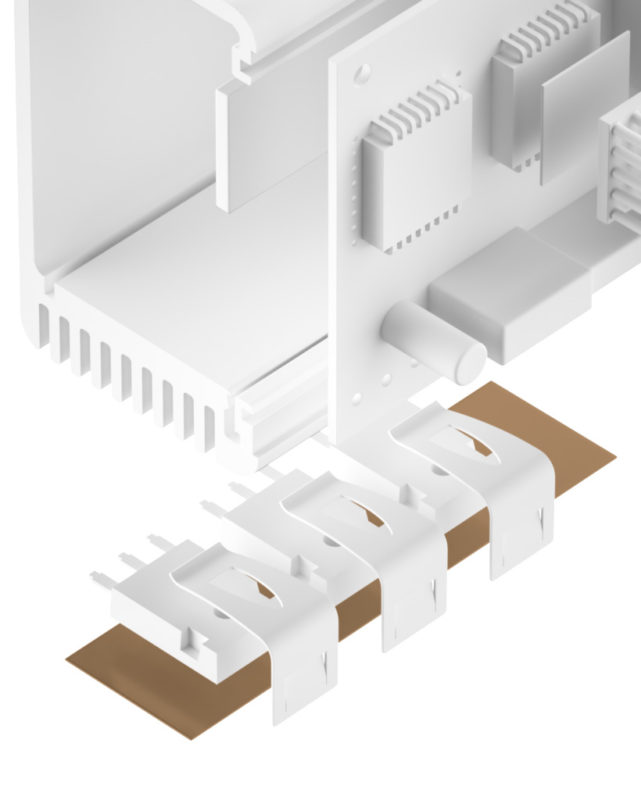

Thermal link of:

MOSFETs or IGBTs
Power diodes or AC/DC converters
Power modules

For use in Switch mode power supplies / Motor control units / High voltage hybrid automotive applications / PS units / Solar systems

OVERVIEW

Property	Unit	TFO-J200-SI	TFO-J300-SI	TFO-J450-SI
Material		Ceramic filled silicone	Ceramic filled silicone	Ceramic filled silicone
Colour		Dunkelbraun	Dunkelbraun	Dunkelbraun
Reinforcement		Fibreglass	Fibreglass	Fibreglass
Thickness	mm	0,20^±0,05	0,30^±0,05	0,45^±0,05
Tensile Strength¹	kpsi	5.8	4.0	2.9
UL Flammability	UL 94	V0	V0	V0
RoHS Conformity	2015 / 863 / EU	Yes	Yes	Yes
Thermal
Resistances² @ 150 PSI	°C-inch²/W	0,31	0,45	0,63
Resistance² @ 30 PSI	°C-inch²/W	0,61	0,74	0,96
Thermal Conductivity	W/mK	2,0	2,0	2,0
Operating Temperature Range	°C	- 40 bis + 180	- 40 bis + 180	- 40 bis + 180
Electric
Breakdown Voltage³	kV AC	5.0	7.0	10.0
Volume Resistivity	Ohm - cm	4.2 x 10¹⁴	3.5 x 10¹⁴	3.8 x 10¹⁴
Dielectric Constant	@ 1 MHz	3.8	4.2	4.3
