TCR-D-SI-2C
CONTACT
Téléchargements TCR-D-SI-2C Data Sheet
Commande d’échantillonnage

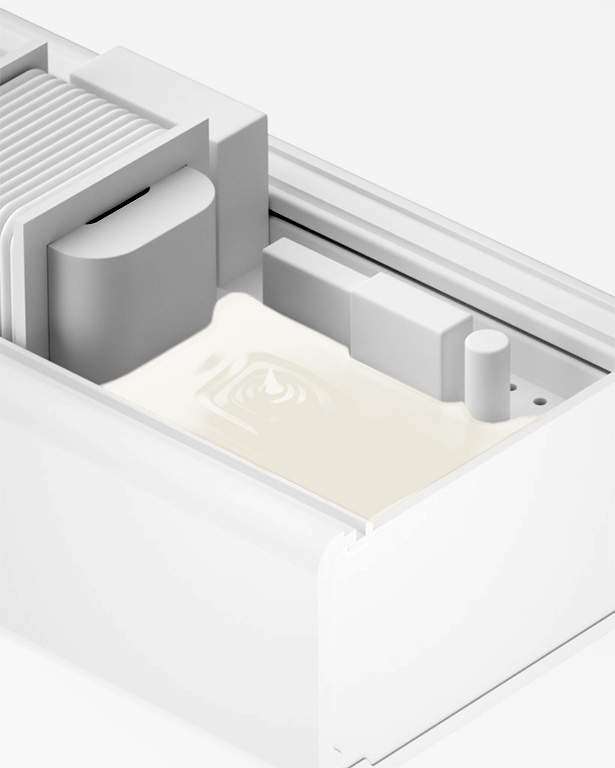

TCR-D-SI-2C is a 2-part addition cure silicone potting compound which is filled with thermally conductive fillers of high temperature stability. After curing the system remains elastic. It is characterised by very good dielectric and mechanic properties and is suited for encapsulating electric and electronic parts such as transformators, capacitors, inductors, sensors, LEDs and can be moulded or dispensed at normal conditions at room temperature or in vacuum. Its rheologic behaviour allows for usage in geometries that are difficult to access.
PROPRIÉTÉS
- Silicone
- 2 part addition cure
- Thermal conductivity: 0.68 W/mK
- Remains elastic after curing
- Almost zero stress on components
- Dispensable or mouldable
- High resistivity against water and humidity
- Shock absorbing
DISPONIBILITÉ
- 2 kg / 40 kg (2 x 20 kg) AB Kit
EXEMPLES D'APPLICATION
Thermal link of:
- Inductors
- Capacitors
- Heat Pipes
- BGA
For use in Automotive applications / Telecommunication / Controlling units / Industrial PCs
OVERVIEW
| Property | Unit | A-Komponente | B-Komponente |
|---|---|---|---|
| Material | Silikon | Hardener | |
| Colour | Beige | Black | |
| Density @ 23 °C | g/cm³ | 1.63 | 1.63 |
| Mischungsverhältnis | Gew. oder Vol. | 1 : 1 | 1 : 1 |
| Hardness | Shore A | 45 | 45 |
| Viskosität (Brookfield) | Pas | 6 | 6 |
| Viskosität (gemischt) (Brookfield) | Pas | 6 | 6 |
| Tensile Strength (cured elastomer after 7 minutes @ 150 °C) | MPa | 252 | 252 |
| Bruchdehnung (7 Minuten Aushärtung @ 150 °C ) | % | 240 | 240 |
| Wärmeausdehnungskoeffizient (7 Minuten Aushärtung @ 150 °C ) | |||
| Volumetrisch | 1 x 10-6 /K | 650 | 650 |
| Linear | 1 x 10-6 /K | 217 | 217 |
| Topfzeit @ 23 °C, 65 % rel. F. | Minuten | ca. 100 | ca. 100 |
| Curing Time @ 25 °C / 100 °C | 24 Stunden / 7 Minuten | 24 Stunden / 7 Minuten | |
| Shelf Life (from Date of Manufacturing, unopened, @ < 30 °C) | Months | 24 | 24 |
| UL Flammability | UL 94 | VO | VO |
| RoHS Conformity | 2015 / 863 / EU | Yes | Yes |
| Technisch | |||
| Thermal Conductivity | W/mK | 0.68 | 0.68 |
| Operating Temperature Range | °C | - 55 bis + 260 | - 55 bis + 260 |
| Dielectric Strength | kV/mm | > 18 | > 18 |
| Volume Resistivity | Ohm-cm | 4.02 x 1014 | 4.02 x 1014 |
| Dielectric Constant | @ 1 kHz | 3.08 | 3.08 |
| Verlustfaktor | @ 1 kHz | 0.009 | 0.009 |
