TPC-R-AL

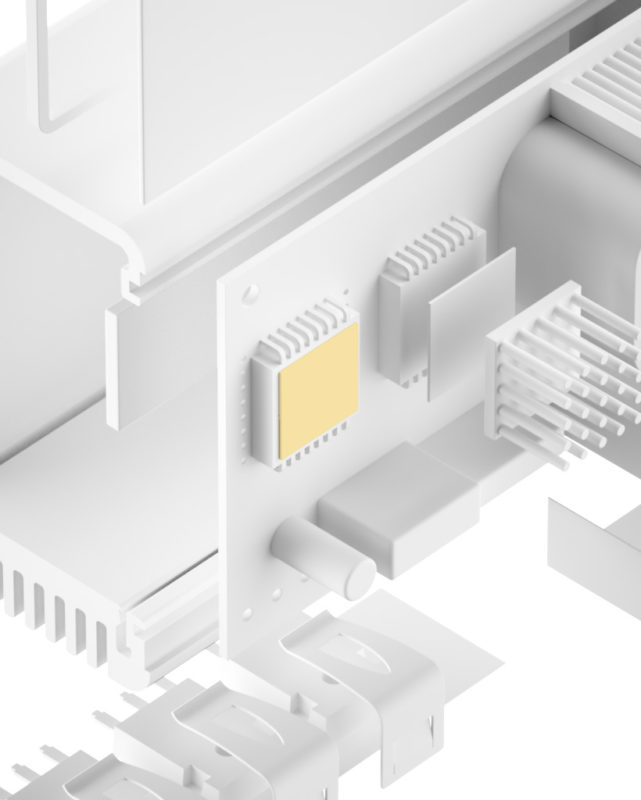

CONTACT Téléchargements TPC-R-AL Data Sheet Commande d’échantillonnageTPC-R-AL is an aluminium film which is coated with a thermally conductive phase changing compound on both sides thus optimising the thermal path e.g. between electronic packages and heat sinks. During warm-up the phase change coating starts filling up surface-specific roughnesses and unevenesses and expels any air enclosures from micro structures even at low pressure. The wettening of the contact areas is further on improved by volumetric material expansion at increasing temperature. Thus the total thermal resistance is minimised. The aluminium carrier effects high mechanical stability and easy handling.
PROPRIÉTÉS
- Optimal thermal contact
- Silicone-free
- Process reliable coating thickness
- Ideal alternative and replacement of messy thermal grease
DISPONIBILITÉ
- Sheet 305 x 610 mm or 457 x 610 mm
- Roll 292 or 445 mm x 152 m
- Non tacky (TPC-RXXX-AL)
- Tacky on one side with PSA
(TPC-RXXX-AL-A1) - With adhesive strips on request
- Optional AL (25 / 51 / 76 / 127 / 254 μm),
phase change coating (13 / 25 / 51 μm) - Die cut or kiss cut parts
EXEMPLES D'APPLICATION
Thermal link of:
- MOSFETs or IGBTs
- Insulated diodes
- Power modules
- CPUs
For use in Servo drive control units / Traction drives / Automation appliances / Microelectronics
OVERVIEW
Property | Unit | TPC-R076-AL | TPC-R102-AL |
---|---|---|---|
Material | Aluminium with phase change coating on both sides | Aluminium with phase change coating on both sides | |
Colour | White | White | |
Thickness Aluminium | μm | 51±8 | 51±8 |
Thickness Phase Change (per side) | μm | 13 | 25 |
Total Thickness | μm | 76 | 102 |
RoHS Conformity | 2015 / 863 / EU | Yes | Yes |
Thermal | |||
Resistances1 @ 150 PSI | °C-inch²/W | 0,019 | 0,034 |
Resistances1 @ 30 PSI | °C-inch²/W | 0,026 | 0,047 |
Resistance2 @ 10 PSI @ Thickness | °C-inch²/W | 0,040 | 0,076 |
Phase Change Temperatur | °C | ca. 60 | ca. 60 |
